BODY

• BODY SHAPE：ML1
• BODY TOP：Poplar Burl Veneer on Flat top with Gloss Finish
• BODY BACK：Mahogany with Gloss Finish

NECK

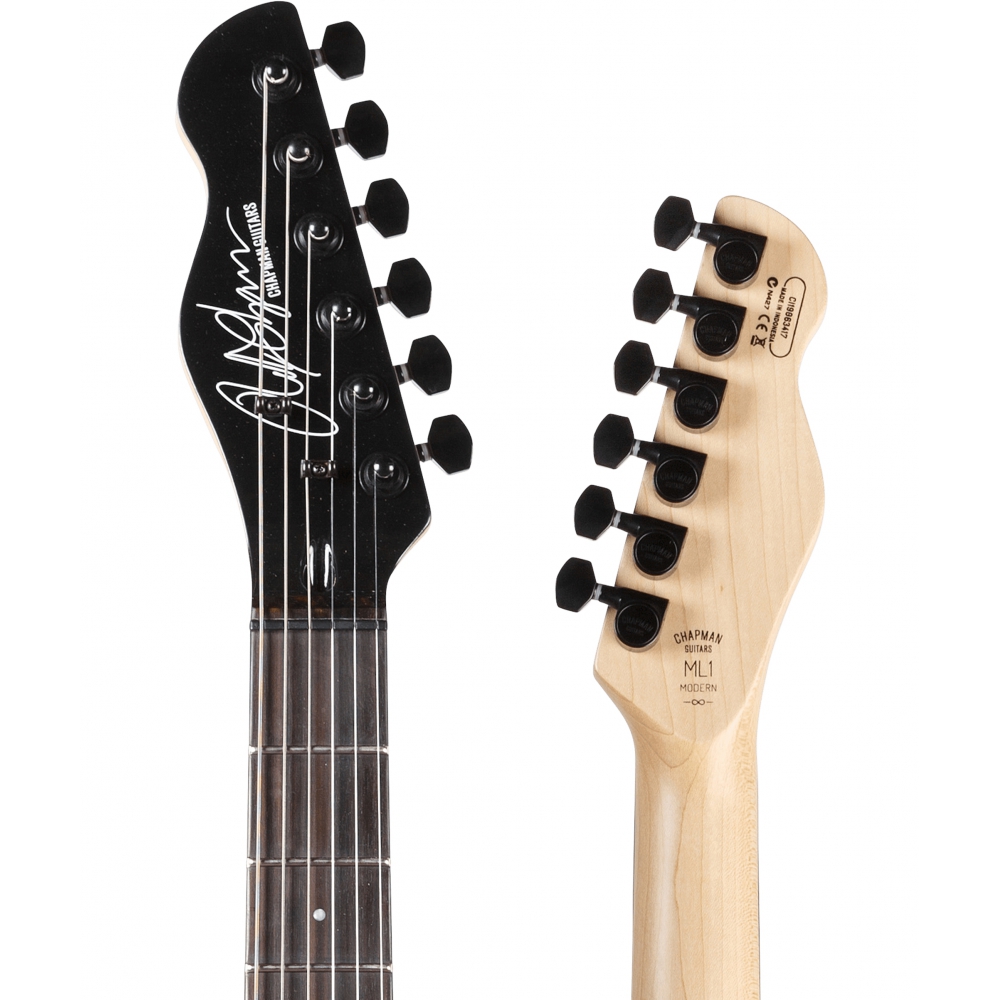

• HEADSTOCK：Straight Heritage Headstock
• TUNERS：Chapman Classic Closed (18:1 Gearing)
• STRING NUT：42mm Graph Tech Black TUSQ XL Nut
• STRING RETAINER：Vintage String Retainers
• NECK：Maple with Satin Finish
• NECK JOINT：Recessed Bolt-on Neck
• NECK SIZE

  WIDTH: NUT 42mm, 22F 57mm
  THICKNESS including fret height: 1F 23mm 12F 24mm

• NECK PROFILE：C Shape
• TRUSS ROD：Dual Action
• FRETBOARD：Macassar Ebony Fretboard with Rolled Edges
• FRETBOARD RADIUS：350mm (~13.5″)
• FRETS：24 Jumbo Nickel Frets
• FRET MARKERS：Pearl Side Dots and Pearl Front Dot Inlays
• 12TH FRET INLAY：Pearl Infinity
• SCALE LENGTH：648mm (~25.5″)

ELECTRONICS

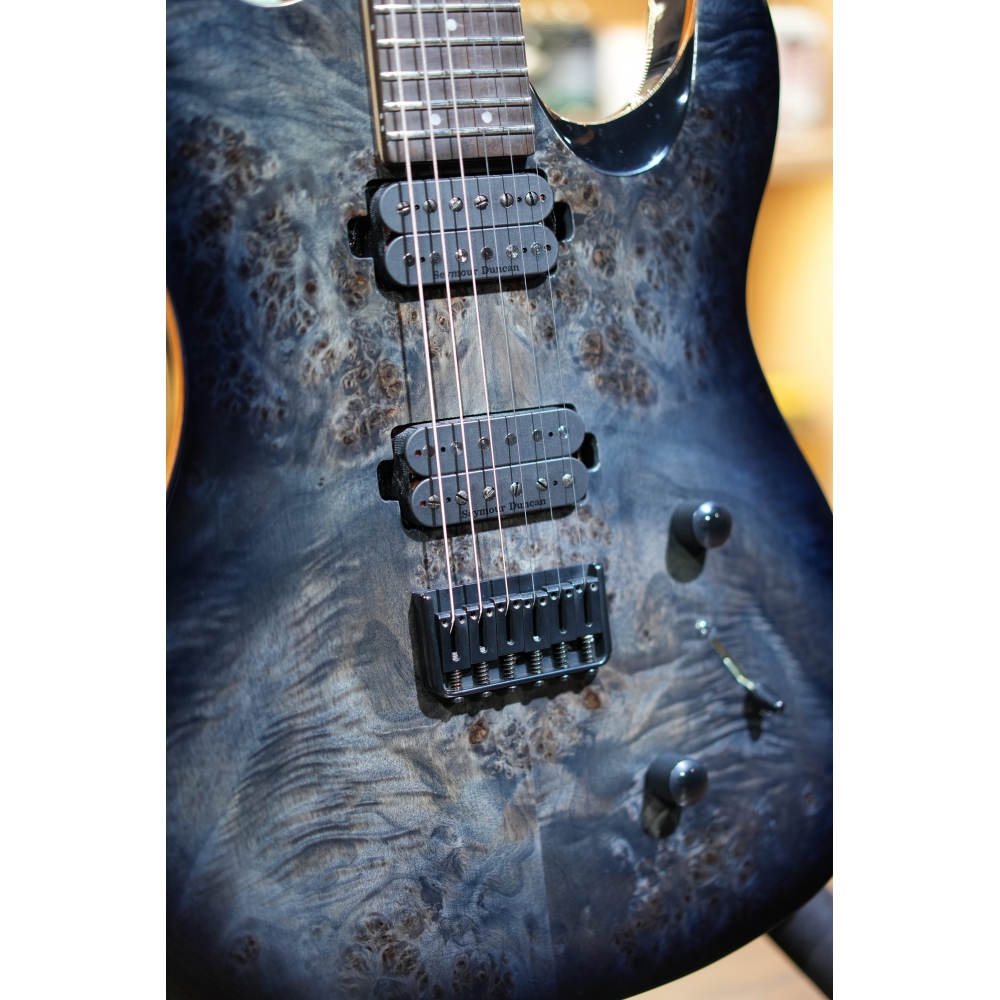

• NECK PICKUP

  Seymour Duncan Sentient Humbucker

  Magnet: Alnico 5

  DC Resistance: 7.8K ohms

• BRIDGE PICKUP

  Seymour Duncan Pegasus Humbucker

  Magnet: Alnico 5

  DC Resistance: 12.5K ohms

• PICKUP SWITCH

  3 Way Blade Switch with Coil Split on Push-Pull Tone Knob

• CONTROLS

  Master Volume (500k), Master Tone with Push-Pull (500k)

HARDWARE

• BRIDGE

  Chapman String-Through Hardtail

• STRAP BUTTONS

  Chapman Classic Strap Buttons

• STRINGS

  Ernie Ball Regular Slinky Nickel Wound, 10-46 (.010 / .013 / .017 / .026 / .036 / .046)

PICKUP SWITCHING

• POSITION 1

  TONE KNOB IN：Bridge

  TONE KNOB OUT：Bridge Split (Outer Coil)

• POSITION 2

  TONE KNOB IN：Bridge + Neck

  TONE KNOB OUT：Bridge + Neck Both Split (Outer Coil)

• POSITION 3

  TONE KNOB IN：Neck

  TONE KNOB OUT：Neck Split (Outer Coil)
